Company Insight

TSS International BV

Armour Mobility

Picture the following situation: An aid convoy is on the way in a crisis zone in the Middle East. Because it is classified as a war-zone and aid workers are constantly in danger of being attacked or kidnapped and held for ransom, the convoy consists of mainly armoured 4x4s. The convoy comes under attack and an armoured SUV with photographers and journalists is separated from the convoy and being chased by insurgents. The vehicle is being shot at heavily and during the shooting, tyres are also hit. The driver of the SUV notices that the attackers are driving a sedan and decides to steer away from the road and to keep driving through the dirt, with flat tyres, in an attempt to shake off the attackers. Because the sedan is not suited for the off-road conditions, the attackers have to give up their chase and let the journalists go. In the meantime, the driver keeps going and has called for help. They keep going until it is safe to stop and wait for a pick up by helicopter. The next day, the vehicle is picked up by armed forces and returned to the compound where it came from. Everyone in the vehicle survived.

A few things stand out from this story, which is an actual (summarised) reference TSS International received from a customer. Firstly, the passengers of the vehicle were well protected by the armouring of the vehicle. Secondly, the driver clearly acted in a way which contributed to the survival of himself and the members of the press in his car. Finally, this car was lucky to have a reliable set of runflats installed, which extended the mobility of the vehicle and allowed it to get out of the danger zone with flat tyres and wait for back-up.

We were really proud to hear a real-life reference like described above. It confirms that TSS is right to always strive for the highest quality, because in emergency situations, the lives of armoured vehicles’ users depend on the material they use. The armouring is a crucial part of the survival, but when an armoured vehicle is standing still in a danger zone, it is a “sitting duck” and the armour will not give enough protection, no matter how well it was built.

With the weights of armoured vehicles increasing all the time due to the required protection levels, TSS has collaborated with customers to develop a special Heavy Duty Wheel which can support the armour of their vehicles. Starting in 2010 with a 1500kg payload per 18” wheel (and a specially designed runflat as well), the payload of TSS Heavy Duty Wheels^Ⓡ has been increased with each update. 1.600kg in 2011, 1.800kgs in 2012, 2.000kgs in 2017 and 2.250kgs for our most recent wheel for the LC300!

For luxury armoured vehicles, 20” Wheel Assemblies are also available, with a payload of at least 1.600kgs.

The Rodgard BPX Runflat (designed especially for TSS) has also evolved to meet the payload requirements and is now also easier to install than ever before.

Thanks to the close collaboration with our partners, we have managed to reach maximum performance on all components, including a tailor-made braking system for armoured vehicles. MOV’IT Security Brakes^Ⓡ are available for most popular armoured vehicles, including the Toyota LC200, MB G-Class, Nissan Patrol Y62, Mercedes-Benz S-Class and many more, ensuring uncompromised braking performance. The latest development being the first-to-market brake system for the armoured Toyota Land Cruiser 300, including an OEM-Compatible Electronic Parking Brake!

The most recent addition to TSS’ Armour Mobility product range is JRZ Suspension for Armoured Vehicles. Designed and manufactured in the Netherlands, JRZ shock absorbers are available in three variants. Stage 1 is a non-adjustable, robust suspension system for budget sensitive end-users, whereas Stage 3 is fully adjustable and customisable to meet the most demanding and variable challenges in the field. With JRZ’s line of Proactive™ shock absorbers, it is even possible to use the OEM sway bars.

Although most products are Heavy Duty and therefore also heavy-weight, TSS ProtecTank^Ⓡadds protection, but saves weight compared to armouring a fuel tank. TSS ProtecTank^Ⓡis the true and original self-sealing fuel tank protection on which many NGO’s, special forces and the likes depend in the danger zone. TSS ProtecTank^Ⓡ has been tested by TNO in the Netherlands and Beschussamt in Germany and requires no modification to the vehicle.

Armouring a vehicle is a task done with great precision and care, but protection is compromised as soon as a door or window is opened. That is why most armoured vehicles are equipped with an intercom, like from B&G Electronics, allowing for closed-window communication with the surroundings of the vehicle, for example at a roadblock. LED-lights (red and/or blue; white and/or yellow) in the grill can help clear the road when a quick getaway is crucial.

One of the most recent developments in the Civilian Armoured Vehicle market is the adoption of shock-mitigating floor mats. In case of an under vehicle explosion, the floor moves upwards up to 4 centimeters in a fraction of a second, potentially shattering the feet of the occupants. The mats act as a buffer between the feet and the floor, reducing the risk of injury up to 90% and increasing survivability. With the new VPAM Standard, using BioFidel Dummies, floor displacement and energy transmission is more important than ever and as SKYDEX’ official distributor, TSS can help you gain the edge in meeting the strict requirements in VPAM ERV Edition 3 (VR7 and VR9).

TSS is a 46-year-old family business, located just south of Rotterdam in The Netherlands. TSS believes in quality & service and is an ISO 9001:2015 certified company. TSS supplies to various armouring companies worldwide, who in their turn build vehicles for NGO’s, UN Agencies, Heads of State, Special Forces, CIT-companies and many more.

More information about these and more products is available on www.TSSH.com

Contact Information

TSS International

Zuideinde 30-34, P.O. Box 2013, 2991 LK

Barendrecht, The Netherlands

+31 180 618 922

from Monday-Friday 08:30-17:00 (GMT+1)

sales@TSSH.com

www.TSSH.com

go to top

01/25/2024 23:59:47

About Us

Website

Get in touch!

Scroll for more

Coming soon:

Armour Mobility products for Toyota Land Cruiser 300

Enquire here

About Us

BENEFIT FROM OUR YEARS OF EXPERIENCE IN VEHICLE SECURITY AND SPECIAL FORCES EQUIPMENT.

TSS International: decades years of experience and expertise in vehicle security and mobility.

TSS specialises in Grade-A products and services focused on all-round vehicle security and mobility. Whether it be Runflat Systems (flat-tyre mobility), Protected Fuel Tanks (explosion-, flame- and leakage-protection), Brake System Upgrades, Two-way Vehicle Intercoms, Heavy-Duty Wheels (1800kg payload) or Anti-Terrorism Products, TSS has a solution for you. We proudly manufacture TSS ProtecTank and TSS Heavy-Duty Wheels and are official distributors of SEMA World anti-terrorism products, B&G Electronics vehicle intercoms, MOV’IT Security Brake Systems, Hutchinson Rock Monster Wheels, Skydex Shock Mitigation Mats, JRZ Heavy Duty Suspension and Talos Under-Car IED-detectors.

TSS International BV focuses on keeping special purpose vehicles moving. Often, these vehicles are armoured conversions of commercial vehicles. These include SUV’s such as the Toyota LandCruiser, Nissan Patrol, Mercedes G-class, VW Touareg and Chevrolet Suburban. Limousines served include the Mercedes S-class, Audi A8, BMW 7-series, Hyundai Equus, Maybach 62S, Bentley Mulsanne and many more. Besides these passenger vehicles, TSS also has solutions for various truck applications, such as Riot Control, Military, Off-Road, High Value Transportation (or CIT) and Utilities.

As these vehicles and their passengers often operate in increasingly dangerous areas, their mobility becomes even more important. Therefore, a reliable package of mobility and safety products is crucial.

Wheel protection, heavy duty brakes, explosion proof and self-sealing fuel tanks, two-way intercoms and bomb-detection are all part of the product line-up which enable uninterrupted mobility under the toughest of circumstances. If the vehicles need to go off-road, TSS can even provide a Central Tyre Inflation System, which allows for optimal tyre pressure in varying road conditions.

Latest developments at TSS International BV:

Complete brake system for armoured Toyota LC300, including OEM-compatible Parking Brake!
TüV-Certified Heavy Duty Wheel for the Toyota LC300 with 2.250kgs payload!
TSS has been named official distributors of JRZ Suspension for the armoured vehicle market
TSS has launched a new website: www.TSSH.com!

Coming soon:

Armour Mobility products for Toyota Land Cruiser 300

Enquire here

contact us

TSS International

Zuideinde 30-34
2991 LK Barendrecht
P.O.Box 2013
2990 DA Barendrecht

www.TSSH.com
sales@tssh.com

Phone: +31 180 618 922
from Monday-Friday 08:30-17:00 (GMT+1)

TSS Heavy Duty Wheels

Learn more

TSS Heavy Duty Wheels (PDF download)

Latest development: Toyota Land Cruiser 300 Heavy Duty Wheel with a TüV-approved payload of 2.250kg!! See the section Rodgard Runflat Systems for information about the FINABEL-tested Heavy Duty BPX Runflat insert.

TSS has developed a solution for civilian armoured vehicles which have become too heavy for the OEM wheels. A robust design, special alloy and rigorous testing have resulted in a reliable solution with runflat capabilities for armoured vehicles ranging from heavy duty SUVs to luxury limousines.

TSS Heavy Duty Wheels have been tested by the German TüV at payloads up to 2.250kg. They have even been ballistically tested by TNO in the Netherlands. X-rays after multiple shots with AK47 bullets show that there are no hairline fractures!

Designed in close collaboration with renowned runflat insert manufacturer Rodgard, these wheels are a perfect combination with the Rodgard BPX Runflat system. This means: excellent performance, high payload and easy installation.

TSS Heavy Duty Wheels are available in 18” versions (payload ranging from 1.600kgs up to 2.250kgs) and 20” versions (1.600kg payload).

TSS ProtecTank

Learn more

TSS ProtecTank ® (PDF download)
TSS Long Range Fuel Tank (PDF download)

When armouring a vehicle, the fuel tank is an especially sensitive component of the vehicle. A crucial, easily penetrable and highly flammable component, if it is not protected properly. Often, steel armour is the first choice of protection, but this adds a lot of weight to the already heavy vehicle and is labour intensive.

TSS has developed a protective treatment which assures that the original fuel tank is covered with a flame retardant and self-sealing coating, limiting the dangers of penetration and flames. An explosive suppressant treatment is also available upon special request.

TSS ProtecTank is a treatment which saves weight and keeps fuel where it is most valuable: inside the tank.

TNO Laboratories in the Netherlands and the Beschussamt Ulm in Germany have tested and approved TSS ProtecTank for its self-sealing capabilities. Certificates and test results are available upon request.

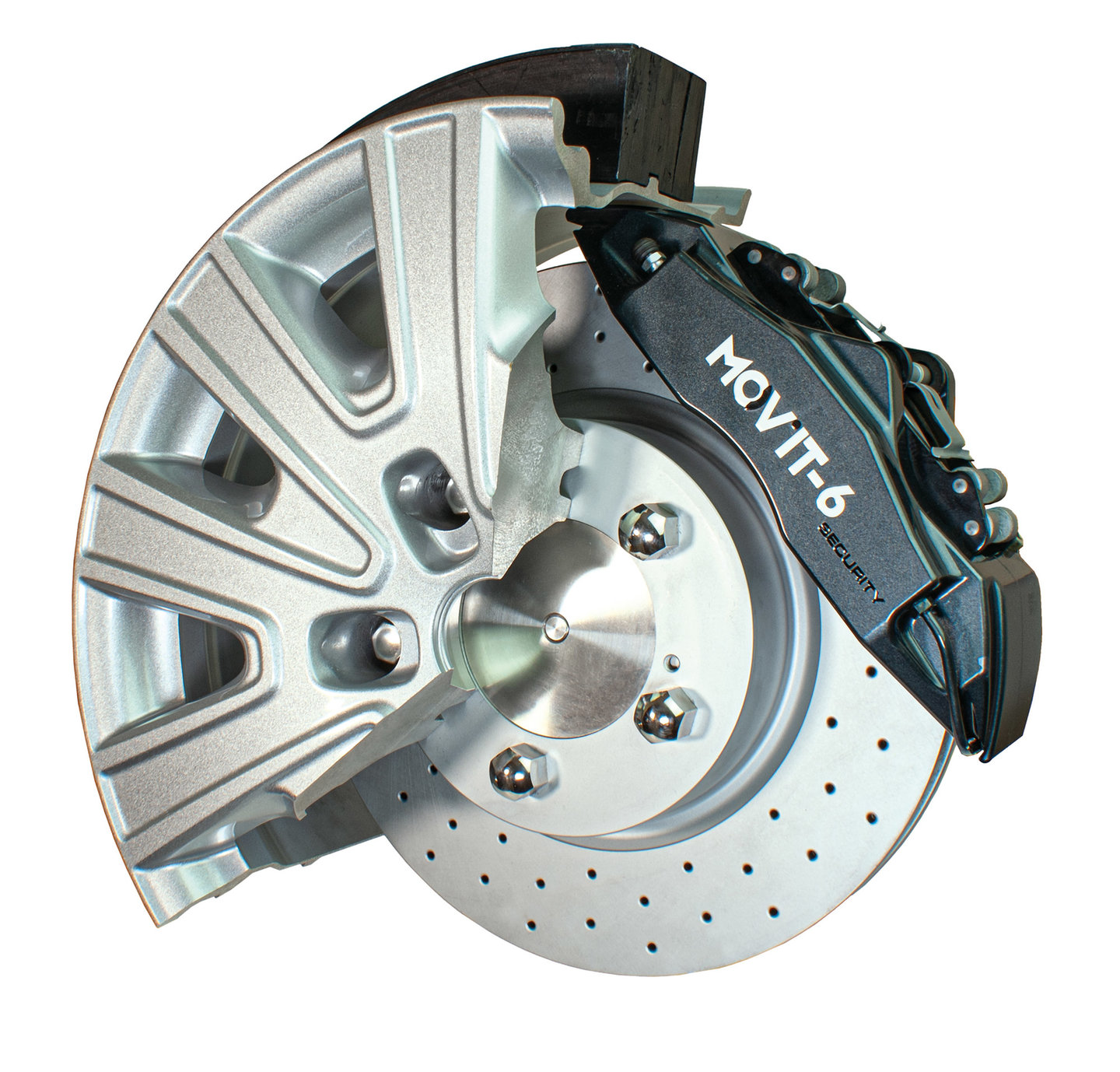

MOV’IT Security Brake Systems

Learn more

MOV'IT Security Brakes (PDF download)

Armoured vehicles are designed with the greatest care, and one priority: protecting the people inside it! However, this protection comes with a side-effect: extreme weight. To be able to safely stop the vehicle, requires an extreme brake system: MOV’IT Security Brakes.

These German engineered and manufactured brake systems consist of steel brake callipers, with a balanced piston-configuration, optimally using the vehicle’s brake system and respecting the pressures required to get an optimal performance.

The brake discs are larger in diameter and width than the OEM discs and drilled & internally ventilated for efficient cooling. Over-heating and fading are no longer an issue.

MOV’IT Security brake pads make optimal use of the larger brake discs, providing an instant performance on a large friction area.

Tested at pressures up to 290 bar, MOV’IT Security brake lines assure a constant and firm system pressure and a quick and reassuring pedal response. Teflon coating over a braided stainless steel reinforcing sleeve also make sure there is no pressure loss in the heat of the moment.

MOV’IT Security brake systems are available for many applications, including but not limited to the Toyota LandCruiser 200; Chevrolet Suburban 2500; Nissan Patrol Y62; Mercedes-Benz G-Wagen, Sprinter and S-Class; and Mitsubishi Pajero.

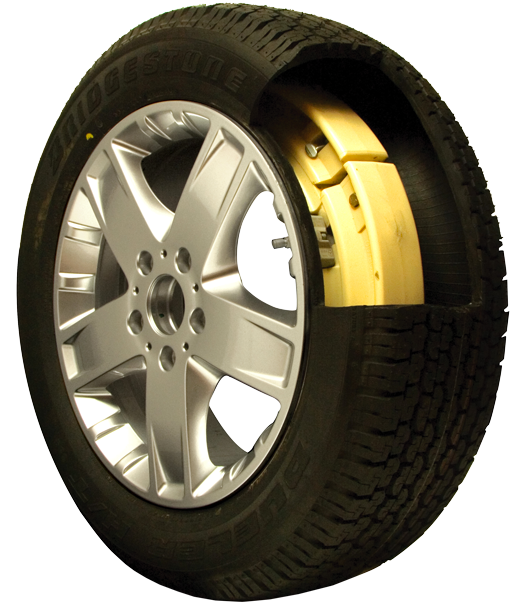

Rodgard Runflat Systems

Learn more

Rodgard Runflats (PDF download)
TSS Wheel Protection (PDF download)

Latest development: The latest generation Rodgard BPX Runflat has been improved for better performance and easier and quicker installation. Tested according to FINABEL standards, this runflat insert is also the strongest runflat available for Civilian Armoured Vehicles, easily handling payloads of up to 2000kgs!

Mobility is an (armoured) vehicle’s most valuable asset. A single flat tyre abruptly robs the vehicle of its mobility. With Rodgard Runflat systems, a car can keep driving with even multiple flat tyres.

Supporting the tread of the tyre, Rodgard Runflat systems ensure full control of the vehicle with deflated tyre(s), allowing the driver to get out of a dangerous situation and navigate to a safe stopping place.

With decades of experience in the industry, Rodgard Runflats are the preferred product for many OEM’s, NGO’s and police forces all over the world. Working closely together with TSS International, Rodgard has developed a special insert for TSS’ Heavy Duty Wheels, allowing even the heaviest commercial armoured vehicles to make maximal use of their mobility.

Rodgard Runflat systems can be fitted on most 1-piece wheels and are available world-wide, with sizes ranging from 15” to 22.5” and runflat performance ranging from 15km to 80km.

B&G Vehicle Intercoms

Learn more

PW150/250 (PDF download)

In many armoured vehicles, the ability to open the door-windows has been disabled due to the armoured glass. However, even if the windows can be opened, this is always a risk in hostile environments. Therefore, it is wise to use an intercom system to communicate with people outside the vehicle when encountering a roadblock or checkpoint. With microphones and speakers discretely installed on the inside and outside of the vehicle, communication from inside the safety of your armoured vehicle is enabled!

Other configurations and options:

Red/blue and/or yellow/white emergency lights for in the vehicle’s grill
Public Address strength loudspeakers
Communication within compartments (i.e. ambulance, limousine)
Active Battery Monitor for vehicles with multiple batteries

SkyDex IED-shock mitigation

Learn more

TSS Specialties (PDF download)
SkyDex Convoy Deck (PDF download)

Under-vehicle blasts can cause serious injury to the occupants of a vehicle: the energy of the blast displaces the armoured steel up to 4cm in microseconds, potentially crushing the feet and lower legs resting on the floor.

Installing SkyDex shock mitigating floor mats can greatly reduce the chance of injury (up to 90% reduction), increasing the survivability for the crew of the armoured vehicle.

Used in 24.000 MRAPs worldwide, SkyDex Convoy Deck is a combat-proven product, now also being used in dozens of VR9-armoured LC200s in the EU.

In addition to improving the survivability for the passengers and driver, SkyDex Convoy Deck can also be used to reduce weight, if it is integrated in the vehicle’s design. Weighing less than 1kg per square meter, it is a very light product, with very big potential.

For more information about SkyDex, visit our Website or contact our sales team.

JRZ Heavy Duty Suspension

Learn more

JRZ Armored & Military (PDF download)
JRZ suspension stage 1 (PDF download)
JRZ suspension stage 2 (PDF download)

Under-vehicle blasts can cause serious injury to the occupants of a vehicle: the energy of the blast displaces the armoured steel up to 4cm in microseconds, potentially crushing the feet and lower legs resting on the floor.

Installing SkyDex shock mitigating floor mats can greatly reduce the chance of injury (up to 90% reduction), increasing the survivability for the crew of the armoured vehicle.

Used in 24.000 MRAPs worldwide, SkyDex Convoy Deck is a combat-proven product, now also being used in dozens of VR9-armoured LC200s in the EU.

For more information about SkyDex, visit our Website or contact our sales team.
